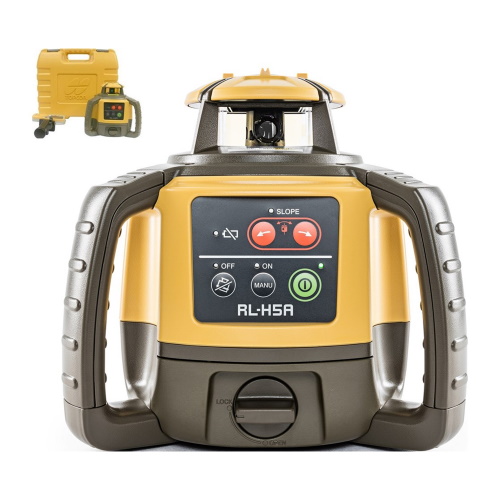

The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser is a multi-purpose laser ideal for grading, excavating, site preparation, concrete works, and other general construction projects. When used with a receiver, it offers a long operating range up to 2,600 feet in diameter. This laser level also offers an accuracy of up to 1/16″ at 100 feet and is self-leveling within 5 degrees.
For added precision and accuracy, the RL-H5A features a manual single-axis leveling mode and rotates 600 times per minute. This horizontal rotating laser is simple to use, intuitive, and re-levels itself immediately if the device is disturbed on the job.
With an IP66 rating, the Topcon RL-H5A is protected from dust and low-pressure water jets. This rotary laser uses either a dry cell or a rechargeable battery that can power the device up to 100 hours, making it the great companion for a long day at work.
____
Configuration Options

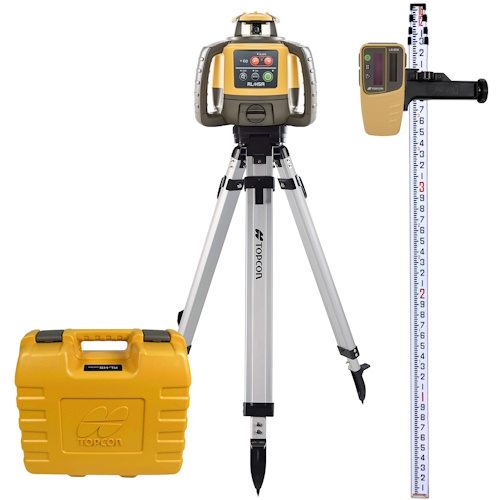

The Topcon RL-H5A has an optional LS-80X laser receiver that features dual LCD and two on-grade precision settings. It also has a two-inch beam detection width and nine-channel grade indicators with high/low out-of-range alert.
- Range up to 2,600 feet with receiver
- Accuracy 1/16″ at 100 feet
- Manual single-axis leveling
- Self-leveling within 5 degrees
- Rotation speed: 600 RPM
- Re-levels immediately if disturbed
- IP66 dustproof and water resistant
- Option for dry cell or rechargeable battery
- Up to 100 hours battery life
- Weighs 5.07 lbs
- Size: 6.77″ L x 8.31″ W x 8.07″ H
- Multi-purpose laser
