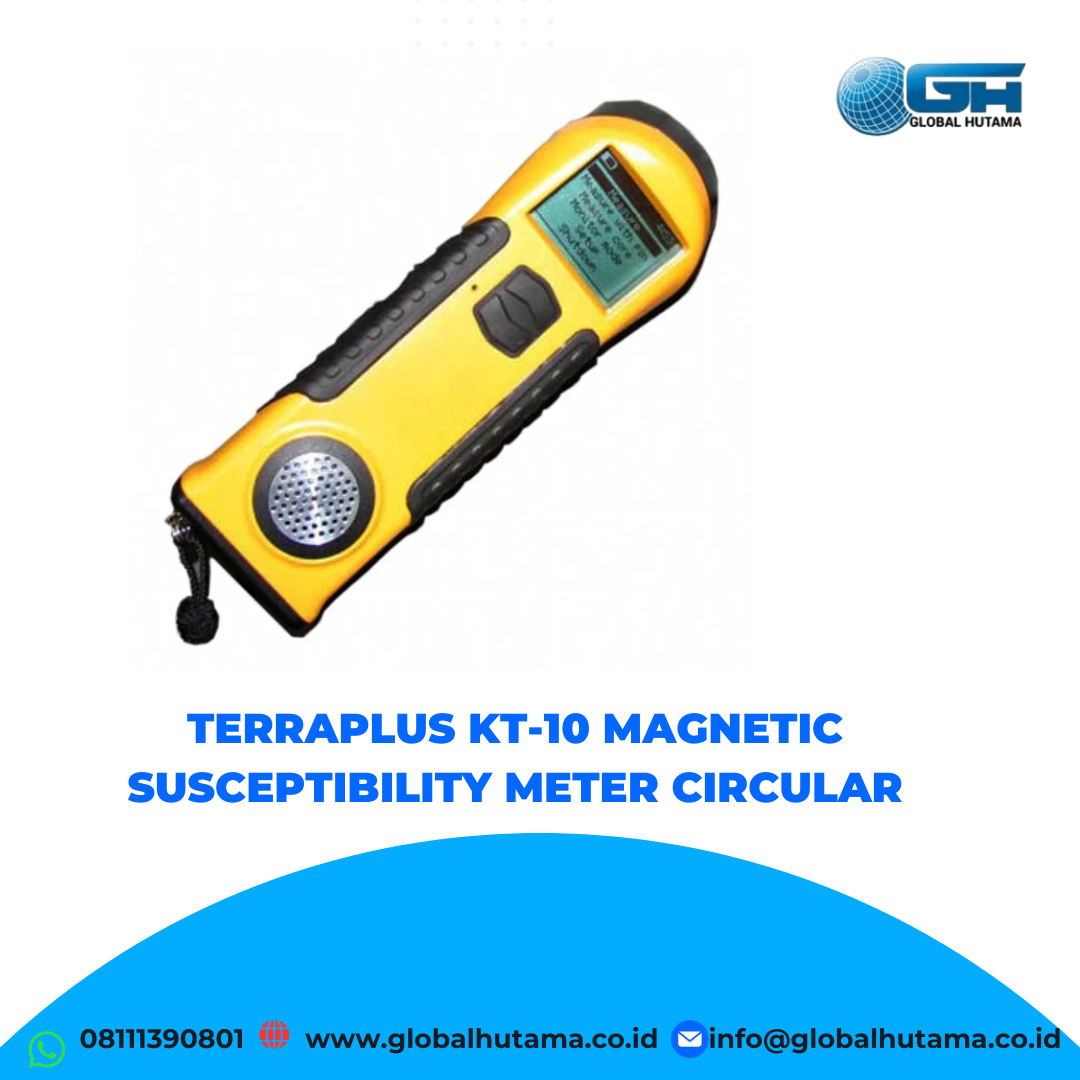

Terraplus KT-10 Magnetic Susceptibility Meter
Prospectors is pleased to introduce the KT-10 version 2, a new-generation magnetic susceptibility meter that allows users to input depth correlation information, receive measurement results in either SI or CGS units, and features a large internal memory. The KT-10 v2 incorporates a range of new benefits, including Bluetooth to transfer Mag-Sus readings integrated with GPS coordinates, more accurate scanning, higher sensitivity, and a graphic display.
It’s come with two types available : Circular Coil (KT-10 v2) or Rectangular Coil (KT-10R v2)
The KT-10 v2 (or KT-10R v2 ) large memory allows the user to input information to correlate every core measurement to its depth. The user can enter information such as borehole I.D., core tray number, the number of rows in a tray, start and end depths, and depth intervals. In the Scanner mode, depth intervals can be recorded with the push of a button. All readings between depth intervals are interpolated into the data for reference.
The KT-10/KT-10R v2 includes a real time diameter correction for both split and full cores. The user can select from a range of drill core diameters (AQ, BQ, NQ, HQ and PQ) or non-standard ones from 2.4 to 12 cm.
Specifications:
| Sensitivity: | 1×10-6 SI Units |
| Measurement Range: | 0.001×10-3to 1999.99 x10-3 SI Units Auto-Ranging |
| Operating frequency: | 10 kHz |
| Measurement frequency: | 20 times per second (in Scan mode, 5 readings average together and 4 readings/ second stored) |
| Display: | High Contrast LCD Graphic Display with 104 x 88 pixels |
| Memory: | 4 GB: 4,000 Total Records Stored* 4,000 scanner measurements with up to 480 data points per record (total of 1,920,000 individual data points). Or 4,000 discrete measurements with 120 seconds of voice notes per reading. Discrete and scanner records can be combined. |
| Control: | 1 button with up / down function |
| Data Input/ Output | USB, Bluetooth with GPS link via Bluetooth |
| Power Supply | 2 AA Alkaline Batteries or 2 optional AA Rechargeable Batteries |
| Battery Life: | Up to 4000 readings without a voice recorder |
| Operating temperature | -20 C to 60 C |
| Dimensions | 200mm x 57mm X 30mm |
| Coil Type/ Dimensions | Circular Coil : Diameter 65 mm |
| Weight | 0.33 kg with 2 ‚AA alkaline batteries installed |
| Geo View Software | Supports all Windows 32 or 64-bit operating systems |
Includes:
- KT-10 v2 Console with pin and wrist strap
- Two Alkaline AA Batteries
- Spare Pin
- USB Cable
- GeoView Software CD
- Operations Manual and Quick Start Guide
- Small Pouch with Foam Insert
- White Cardboard Box
